PCB Panelization Rule

PCB Panelization Rule

sumcard 28/08/2016 0

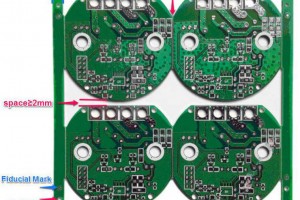

You can put same designs or different designs in one Gerber to get a panelized PCB. To get a panelized PCB,you should follow the rules below:a.Put the V-cut line in the Outline Layer(GKO/GML).In Eagle, put it in layer 46 & 50.b.The penal size should be larger than 8*8cm, each sub...
