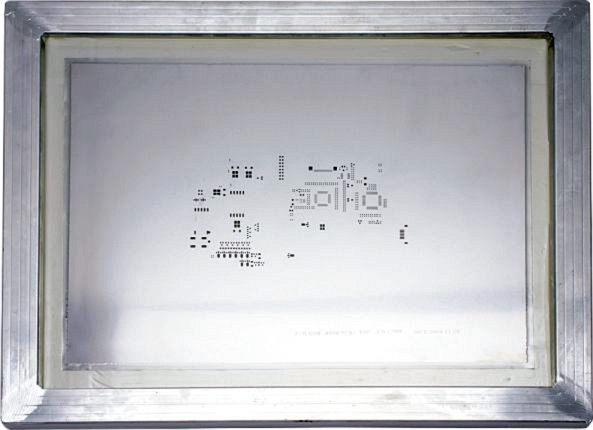

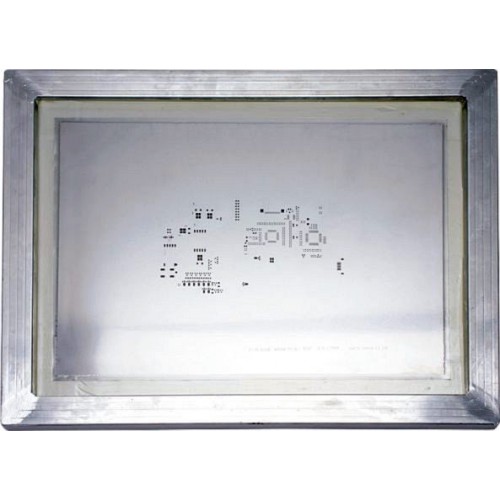

The Solder Paste Stencil also known as SMT Stencil, is Laser-cut steel on a aluminum frame with a minimum recommended pitch of 0.4mm.This Solder Paste Stencil are custom-made for your PCB using your Gerber or CAD files.With SMT Stencil,you can make your PCB assembly job easier and save your time.


By default,the Solder Paste Stencil are framed.We offer frameless solder paste stencil too.
Frameless solder paste stencils are recommended for prototype printed circuit board assembly or short runs.If you are going to
manually print solder paste,we sugesst this for less expense.

*Please make sure the effective area is twice as big as your PCB so that top and bottom side can be placed on the same stencil.

 Effective Area Total Size Price Weight

 13.0 x 21.0 cm

 30.0 x 40.0 cm

 $19

 1.9kg

 19.0 x 29.0 cm

 37.0 x 47.0 cm

 $20

 2.0kg

 19.0 x 29.0 cm (Frameless) 28.0 x 38.0 cm (Frameless) $18 1.0kg

 24.0 x 34.0 cm

 42.0 x 52.0 cm

 $28

 2.4kg

 22.0 x 40.0 cm 40.0 x 60.0 cm $32 2.7kg
 22.0 x 60.0 cm 40.0 x 80.0 cm $34 3.8kg

 27.0 x 37.0 cm

 45.0 x 55.0 cm

 $36

 2.8kg

 37.0 x 47.0 cm

 55.0 x 65.0 cm

 $44

 3.9kg

 38.0 x 38.0 cm

 58.4 x 58.4 cm

 $44

 3.6kg

 50.0 x 50.0 cm

 73.6 x 73.6 cm

 $60

 5.7kg

 22.0 x 76.0 cm 40.0 x 100.0 cm $42 4.3kg
