ESP3212 Wifi Bluetooth Combo Module

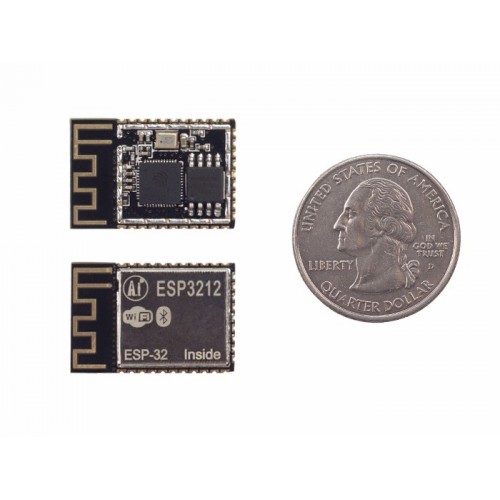

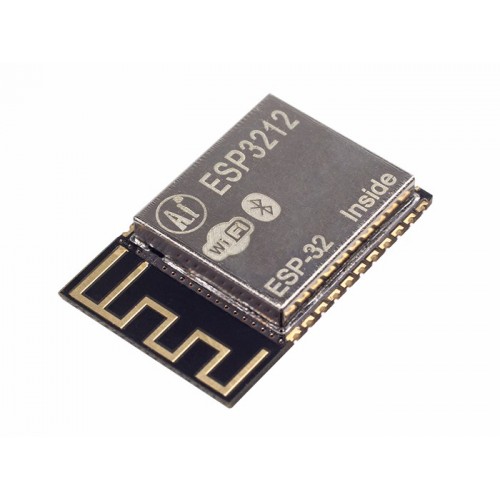

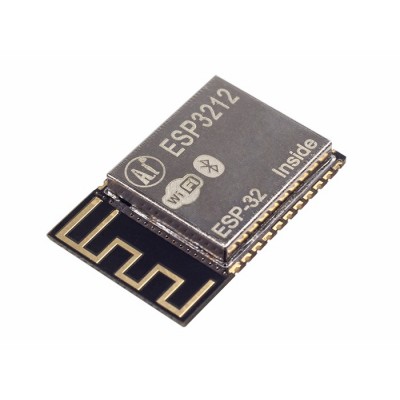

New ESP3212 Wifi Bluetooth Combo Module

Shipping Estimate

 DHL | China Post | Deutsche Post | Swiss Post | UPS | EMS


ESP-32S is available now!


Description

ESP3212 Wifi Bluetooth combo module is ultra high performance and ultra low-power consumption Wi-Fi and Bluetooth combo wireless platform based on ESPRESSIF ESP32 chipset. ESP-3212 integrates dual-core processor, 448 KByte ROM,520 KByte SRAM,16 KByte SRAM in RTC, 802.11 b/g/n/e/I Wi-Fi, Bluetooth v4.2 BR/EDR & BLE, clocks & Times, abundant peripheral Interfaces and sercurity mechanism.

ESP3212 Wifi Bluetooth combo module provides SDK Firmware for fast on-line programming and open source toolchains based on GCC for development support. It is designed for Generic low power IoT sensor hub, loggers, video steaming for camera, Wi-Fi & Bluetooth enabled devices, Home automation and mesh network applications, aimed at makers, hardware engineers, software engineers and solution provides.

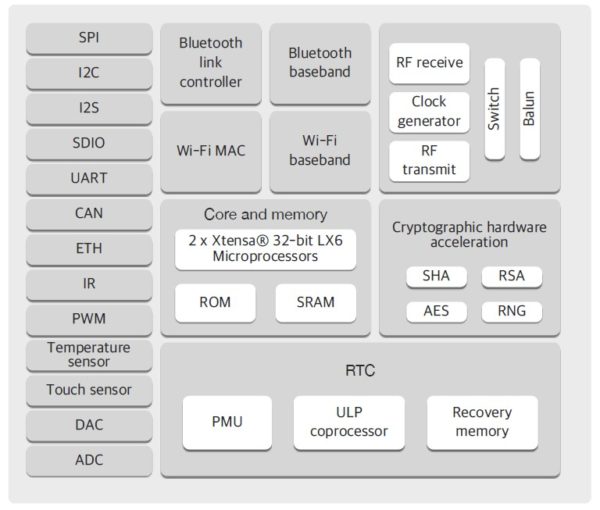

Introduce ESP32

ESP32 is a single chip 2.4 GHz Wi-Fi and Bluetooth combo chip designed with TSMC ultra low power 40 nm technology. It is designed and optimized for the best power performance, RF performance, robustness, versatility, features and reliability, for a wide variety of applications, and different power profiles.

ESP32 is the most integrated solution for Wi-Fi + Bluetooth applications in the industry with less than 10 external components. ESP32 integrates the antenna switch, RF balun, power amplifier, low noise receive amplifier, filters, and power management modules. As such, the entire solution occupies minimal Printed Circuit Board (PCB) area.

ESP32 is designed for mobile, wearable electronics, and Internet of Things (IoT) applications. It has many features of the state-of-the-art low power chips, including fine resolution clock gating, power modes, and dynamic power scaling.


Features

  • CPU and Memory: Xtensa® 32-bit LX6 Dua-core processor, up to 600 DMIPS.
  • 448 KByte ROM
  • 520 KByte SRAM
  • 16 KByte SRAM in RTC.
  • QSPI can connect up to 4* Flash/SRAM, each flash should be less than 16 Mbytes.
  • Supply Voltage: 2.2V~3.6V

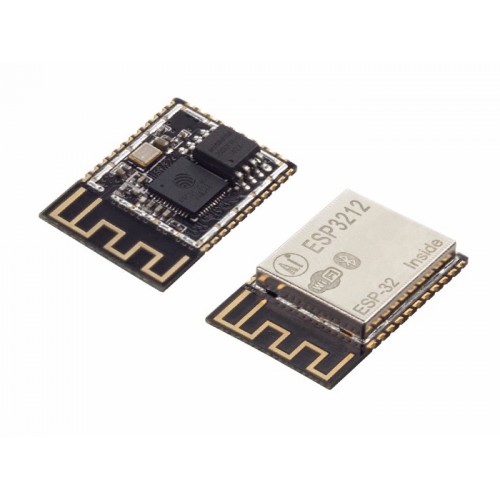

ESP3212 Overview

WiFi-Features

  • 802.11 b/g/n/e/i
  • 802.11 n (2.4 GHz), up to 150 Mbps
  • 802.11 e: QoS for wireless multimedia technology
  • WMM-PS, UAPSD
  • A-MPDU and A-MSDU aggregation
  • Block ACK
  • Fragmentation and defragmentation
  • Automatic Beacon monitoring/scanning
  • 802.11 i security features: pre-authentication and TSN
  • Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS)
  • Infrastructure BSS Station mode/SoftAP mode
  • Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management
  • UMA compliant and certified
  • Antenna diversity and selection

Bluetooth Features

  • Fragmentation and defragmentation
  • Automatic Beacon monitoring/scanning
  • 802.11 i security features: pre-authentication and TSN
  • Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS)
  • Infrastructure BSS Station mode/SoftAP mode
  • Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management
  • UMA compliant and certified
  • Antenna diversity and selection

CPU & Memory

  • Xtensa® Dual-Core 32-bit LX6 microprocessors, up to 600 DMIPS
  • 448 KByte ROM
  • 520 KByte SRAM
  • 16 KByte SRAM in RTC
  • QSPI Flash/SRAM, up to 4 x 16 MBytes
  • Power supply: 2.2 V to 3.6 V

Clocks and Timers

  • Internal 8 MHz oscillator with calibration
  • Internal RC oscillator with calibration
  • External 2 MHz to 40 MHz crystal oscillator
  • External 32 kHz crystal oscillator for RTC with calibration
  • Two timer groups, including 2 x 64-bit timers and 1 x main watchdog in each group
  • RTC timer with sub-second accuracy
  • RTC watchdog

Advance Peripheral Interfaces

  • 12-bit SAR ADC up to 18 channels
  • 2 × 8-bit D/A converters
  • 10 × touch sensors
  • Temperature sensor
  • 4 × SPI
  • 2 × I2S
  • 2 × I2C
  • 3 × UART
  • 1 host (SD/eMMC/SDIO)
  • 1 slave (SDIO/SPI)
  • Ethernet MAC interface with dedicated DMA and IEEE 1588 support
  • CAN 2.0
  • IR (TX/RX)
  • Motor PWM
  • LED PWM up to 16 channels
  • Hall sensor
  • Ultra low power analog pre-amplifier

Security

  • IEEE 802.11 standard security features all supported, including WFA, WPA/WPA2 and WAPI
  • Secure boot
  • Flash encryption
  • 1024-bit OTP, up to 768-bit for customers
  • Cryptographic hardware acceleration:
    • AES
    • HASH (SHA-2) library
    • RSA
    • ECC
    • Random Number Generator (RNG)

Application

  • Generic low power IoT sensor hub
  • Generic low power IoT loggers
  • Video streaming from camera
  • Over The Top (OTT) devices
  • Music players
    • Internet music players
    • Audio streaming devices
  • Wi-Fi enabled toys
    • Loggers
    • Proximity sensing toys
  • Wi-Fi enabled speech recognition devices
  • Audio headsets
  • Smart power plugs
  • Home automation
  • Mesh network
  • Industrial wireless control
  • Baby monitors
  • Wearable electronics
  • Wi-Fi location-aware devices
  • Security ID tags
  • Healthcare
    • Proximity and movement monitoring trigger devices
    • Temperature sensing loggers

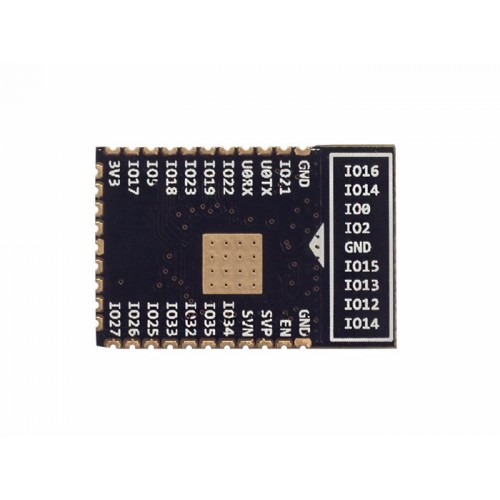

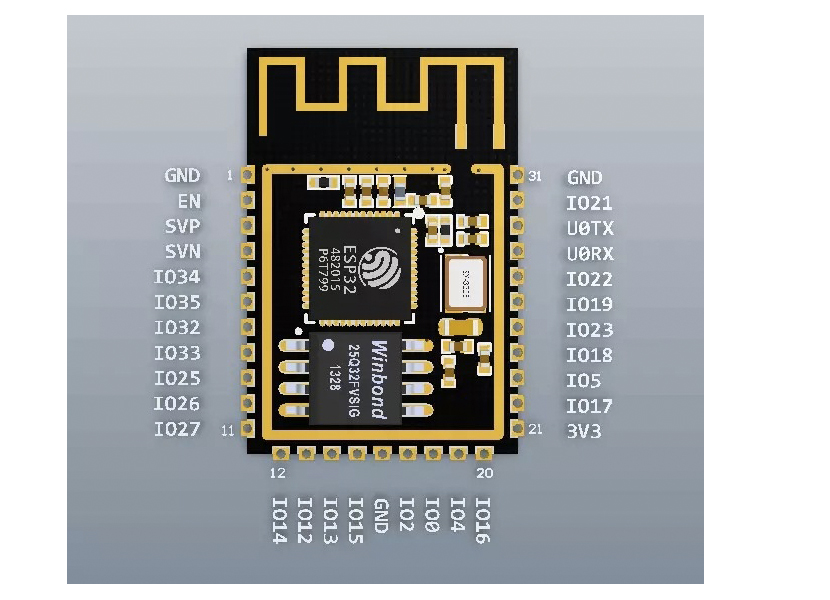

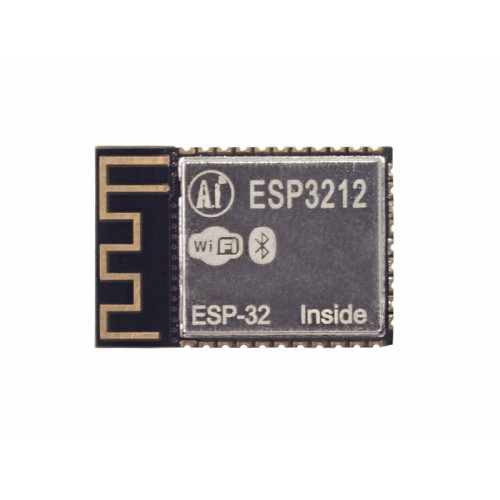

ESP3212 Pinout

PIN NUMBERPIN NAMEFUNCTION
1GNDGround
2ENChip enable pin. Active high
3SVPSENSOR_VP, GPIO36, ADC1_CH0, RTC_GPIO0
4SVNSENSOR_VN, GPIO39, ADC1_CH3, RTC_GPIO3
5IO34GPIO34, ADC1_CH6, RTC_GPIO4
6IO35GPIO35, ADC2_CH7, RTC_GPIO5
7IO32GPIO32, 32K_XP, (32.768 kHz crystal oscillator input),ADC1_CH4, TOUCH9, RTC_GPIO9
8IO33GPIO33, 32K_XN,(32.768 kHz crystal oscillator input),ADC1_CH5, TOUCH8, RTC_GPIO8
9IO25GPIO25, DAC_1, ADC2_CH8, RTC_GPIO6
10IO26GPIO26, DAC_2, ADC2_CH9, RTC_GPIO7
11IO27GPIO27, ADC2_CH7, TOUCH7, RTC_GPIO17
12IO14GPIO14, ADC2_CH6, TOUCH6, RTC_GPIO16, MTMS, HSPICLK
13IO12GPIO12, ADC2_CH5, TOUCH5, RTC_GPIO15, MTDI, HSPIQ
14IO13GPIO13, ADC2_CH4, TOUCH4, RTC_GPIO14, MTCK, HSPID, U0CTS
15IO15GPIO15, ADC2_CH3, TOUCH3, RTC_GPIO13, MTDO, HSPICS0, U0RTS
16GNDGND
17IO2GPIO2, ADC2_CH2, TOUCH2, RTC_GPIO12, HSPIWP
18IO0GPIO0, ADC2_CH1, TOUCH1, RTC_GPIO11, CLK_OUT1
19IO4GPIO4, ADC2_CH0, TOUCH0, RTC_GPIO10, HSPIHD
20IO16GPIO16, HS1_DATA4
213V33.3V power supply
22IO17GPIO17, HS1_DATA5
23IO5GPIO5, VSPICS0, HS1_DATA6
24IO18GPIO18, VSPICLK, HS1_DATA7
25IO23GPIO23
26IO19GPIO19, VSPIQ, HS2_DATA2
27IO22GPIO22, VSPIWP, HS2_CLK
28U0RXU0RXD, GPIO3, CLK_OUT2, HS2_DATA0
29U0TXU0TXD, GPIO1, CLK_OUT3, HS2_DATA1
30IO21GPIO21, VSPIHD, HS2_CMD
31GNDGround


ESP3212 Resources




Reviews about ESP3212 Wifi Bluetooth Combo Module
Average rating: 0 reviews
Total reviews: 0
Write your own review on this product.
Write a review
Sort by:

Write a review

Note: HTML is not translated!

Add the image to the presentation (max 3):

  • Product Code: MOD010
  • Availability: Pre-Order
  • $6.95
  • 10 or more $6.60
  • 20 or more $6.25
  • 50 or more $5.91

Tags: ESP3212
