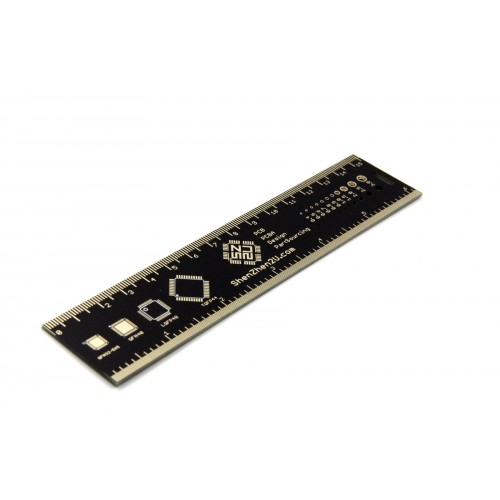

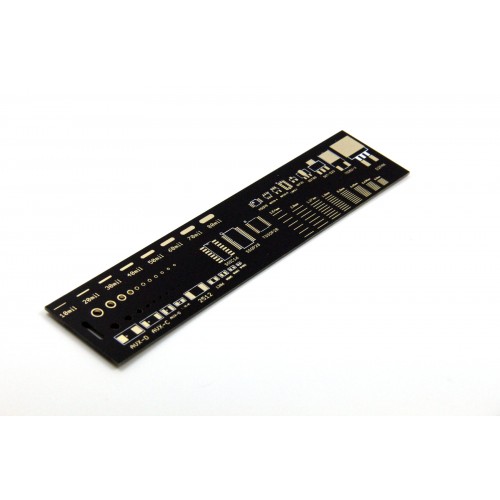

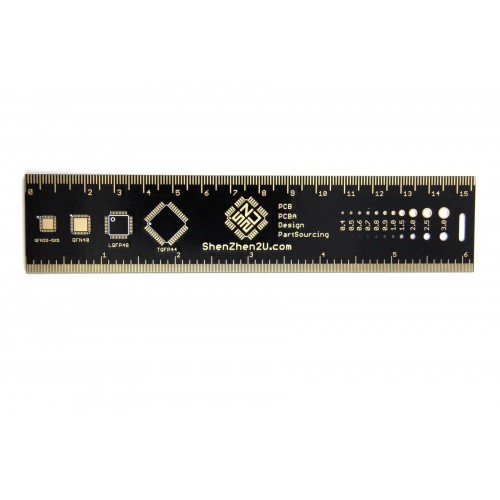

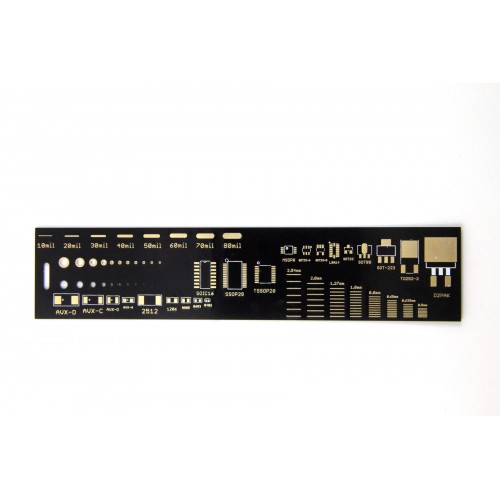

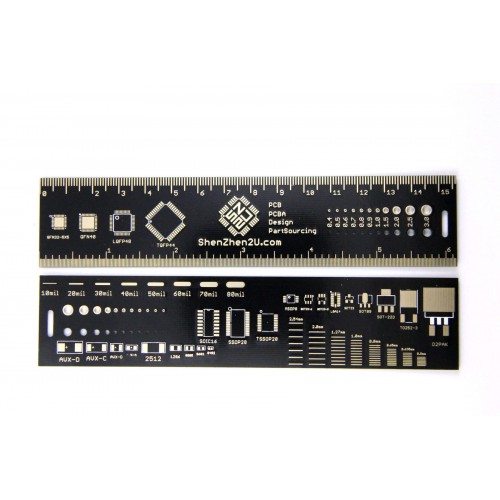

This PCB ruler include following templates can give you some reference when you doing PCB layout. Also you can see the quality of our PCB Manufacture.
  • Package: QFN32-5X5,QFN40,LQFP48,TQFP44,SOIC16,SSOP28,TSSOP20,MSOP8,SOT23-6,SOT23-5,LGA14,SOT23,SOT89,SOT-223,TO252-3,D2PAK,AVX-D,AVX-C,AVX-B,AVX-A,2512,1206,0805,0603,0402
  • Trace Width : 10/20/30/40/50/60/70/80mil
  • Trace Gap: 2.54/2.0/1.27/1.0/0.8/0.65/0.635/0.5mm
  • Hole Size: 0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.5/2.0/2.5/3.0mm
Ruler Specification:
  • Size:15.6cmx3.4cm
  • FR4, 1.2mm thickness, ENIG
