Digital Multimeter VC890D

Digital Multimeter VC890D

Shipping Estimate

Enter your destination to get a shipping estimate.

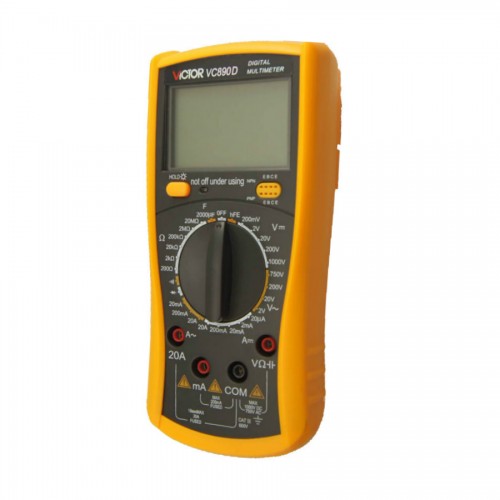

VC890D is a stable multimeter with 25mm LCD display, driven by battery. It's widely used on measuring DCV, ACV, DCA, ACA, resistance, capacitance, diode, transistor, and continuity test. It’s an ideal tool for lab, factory and family.

·New type holster, streamline design.
·Large LCD makes the reading clearly.
·Metallic screen board with stronger antimagnetic and anti-interferential function.
·Full function protection, anti-high voltage circuit design.

Package content:
Battery x1

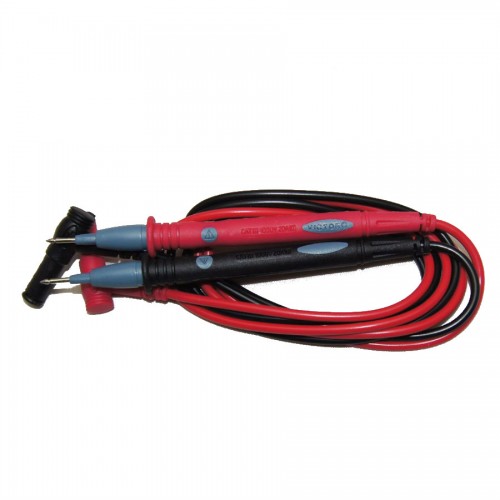

Test Leads x1
Multimeter x1

Basic Function

Range

Basic accuracy

DC Voltage

200mV/2V/20V/200V/1000V

±(0.5%+3)

AC Voltage

2V/20V/200V/750V

±(0.8%+5)

DC Current

20uA/2mA/200mA/20A

±(0.8%+10)

200uA/20mA/200mA/20A



AC Current

2mA/200mA/20A

±(1.0%+15)

20mA/200mA/20A



Resistance

200Ω/2kΩ/20kΩ/200kΩ /2MΩ/20MΩ

±(0.8%+3)

200Ω/2kΩ/20kΩ/200kΩ/20MΩ



Capacitance

20nF/2uF/200uF

±(2.5%+20)

Celsius

(-40~1000)℃





Special Function

Diode

Transistor

Continuity buzzer

Low battery indication

Data Hold

Auto power off

Function protection

Restorable fuse protection

Shockproof protection

Input impedance

10МΩ

Sampling rate

3 times/s

AC Frequency response

40~400Hz

Operation way

Manual range

Max. Display

1999

LCD size

55×43mm

Battery

9V (6F22)

Product color

Case: dark gray; Holster color:yellow

Product Net Weight

Approx:270g

Product Dimension

168×87×47mm

Standard Accessories

Test leads、battery、instruction manual、TP01

temperature probe(with temperature function)、Testing accessories

Standard inner packing

Color box

Standard Quantity Per Carton

30 pcs

Carton size

405×350×450mm

Standard Gross Weight

Approx:25kg
